調査機器＜SeapiX/Echoes/SAMS＞
 SeapiX-C |
|
|---|---|
| Product type | 3D sonar |
| Aperture | 120°×120° |
| Frequency | 145khz to 155khz |
| Number of beams per swath | 256 beams Along track and 256 beams Across track |
| Single element beam opening | 1.6°×1.6° |
| Array | Steerable Symetrical dual Multibeam/No moving part |
| Multi-head capability | up to 4 simultaneous heads managed by single interface |
| Modes | Classic Bathymetry / Static Bathymetry / Scan |
| Acoustic processing presentation with navigation | Realtime acoustic data fusion with navigation GIS system |
| 3D acoustic presentation | 2D and 3D acoustic presentation |
| Bathymetry | Bathymetry from all swath. dynamic and static bathymetry |
| Navigation & Chart system | Embedded ECS Navigation and charting system |
| Recording / Export | RAW Data. S7k |
| Motion sensor | embedded |
| Network | Copper Gigabit Network (optical Fiber in option) |

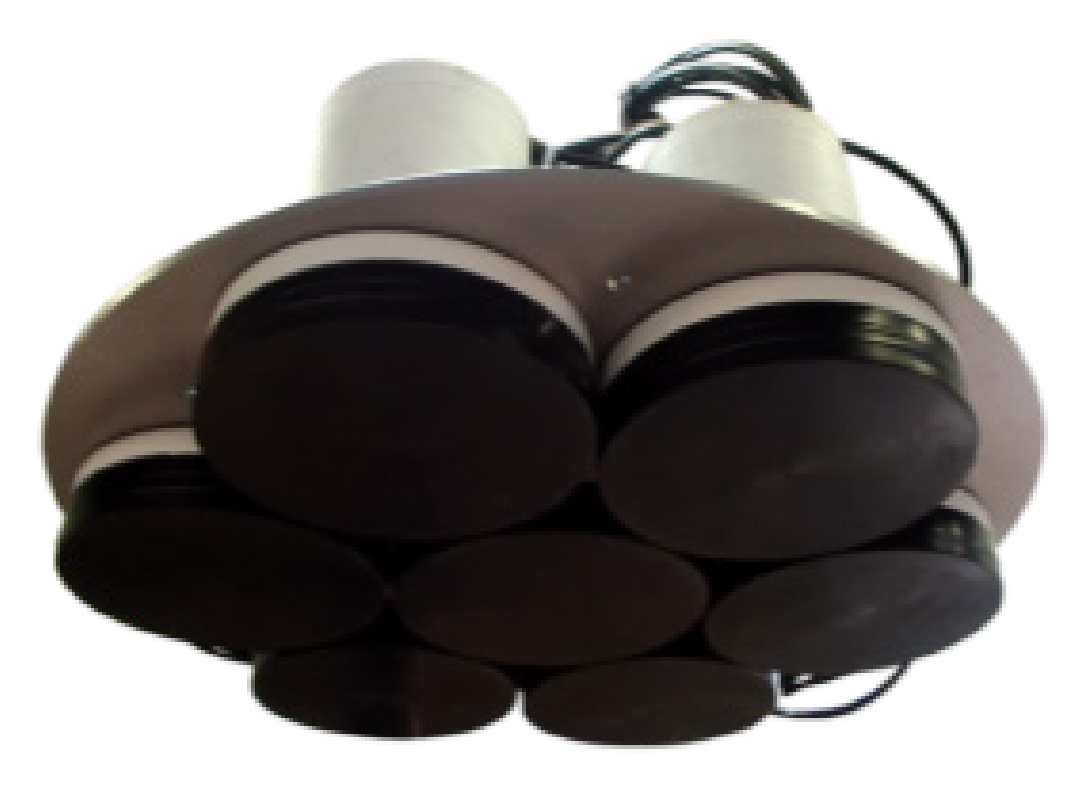

 Echoes 3500 T1 |

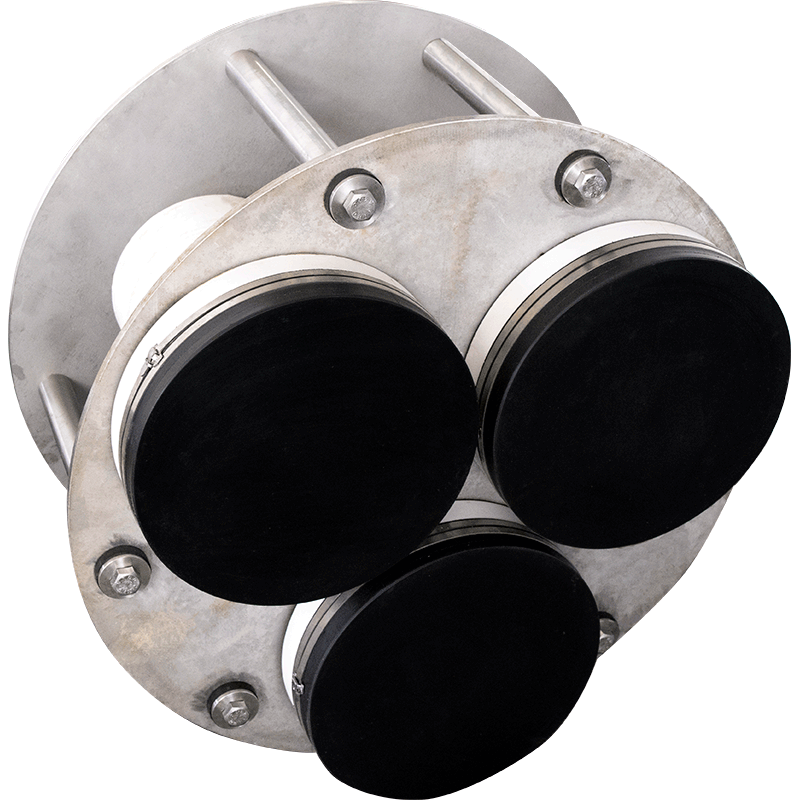

 Echoes 3500 T3 |
 Echoes 3500 T7 |

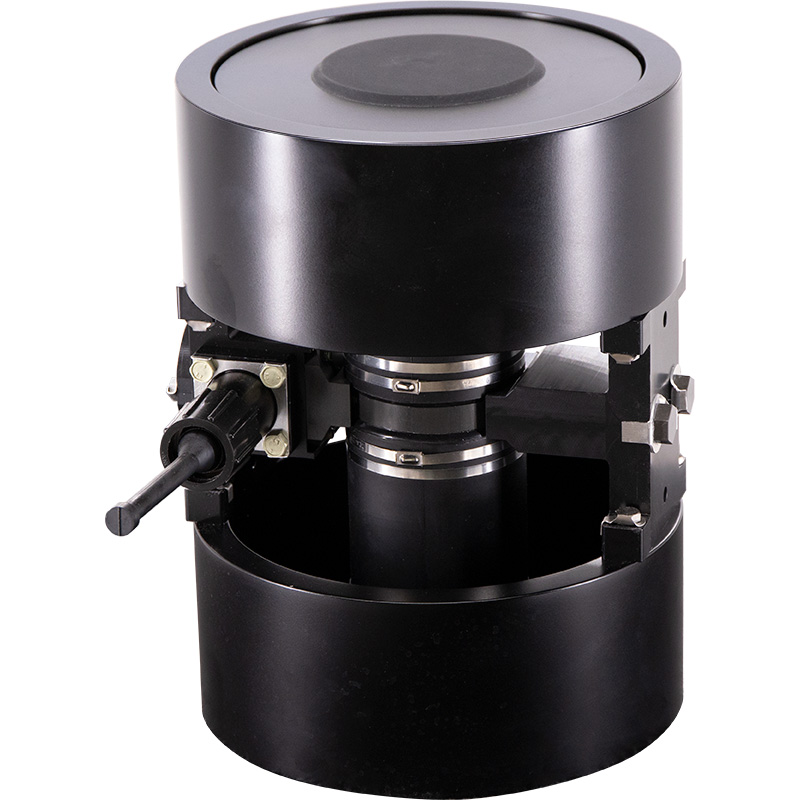

 Echoes 5000 |
 Echoes 10000 |
|
|---|---|---|---|---|---|
| Typical penetration and operarional depth(m) |
Shallow water | Continental shelf | Full ocean depth | 6,000m depth-rating | Shallow water |
| Frequency range (kHz) | 1.7-5.5 | 1.7-5.5 | 1.7-5.5 | 2-6 | 5-15 |
| Equivalent source level (dB @Kva) (ref 1μPa@1m) |
195 | 203 | 208 | 189 | 202 |
| Transmission power(kVA) | 2 | 2(4 option) | 4&6 | 1 | 2/1(compact version) |
| Resolution (cm) | 20 | 20 | 20 | 20 | 8 |
| Frequency response | Flat spectrum | Flat spectrum | Flat spectrum | Flat spectrum | Flat spectrum |
| Digital data format (bit raw data) | 24 | 24 | 24 | 24 | 24 |
| Available pulses | AM-FM/User- designed and chirp library |
AM-FM/User- designed and chirp library |
AM-FM/User- designed and chirp library |
AM-FM/User- designed and chirp library |
AM-FM/User- designed and chirp library |
| Aperture(°) | 45 | 30 | 20 | 30 | 20/30(compact version) |
| Hull-mopunt/Gondola | ● | ● | ● | ||
| Pole-mount | ● | ● | ● | ||
| Tow fish | ● | ||||
| AUV kit | ● | ||||
| USV kit | ● | Available for compact version only |
 SAMS-150 |
Sonar Kit SAMS-50 |
|
|---|---|---|
| Applications | Tow fish/ OEM version available for AUV/ROV kit | Tow fish/ OEM version available for AUV/ROV kit |
| Central frequency | 150 kHz | 50 kHz |
| Bandwidth (kHz) | 30 | 15 |
| Swath | 500 m | 1800 m |
| Along-track / Across-track Resolution | 6 cm × 2.5cm | 40 cm × 5cm |
| Modules | 1/2/3 0.6m modules | 3 modules |
| Coverage rate | Up to 6km2/h | Up to 8km2/h |
| Depth | Full ocean | Full ocean |
| Interferometric Bathymetry | Interferometric Bathymetry option |
